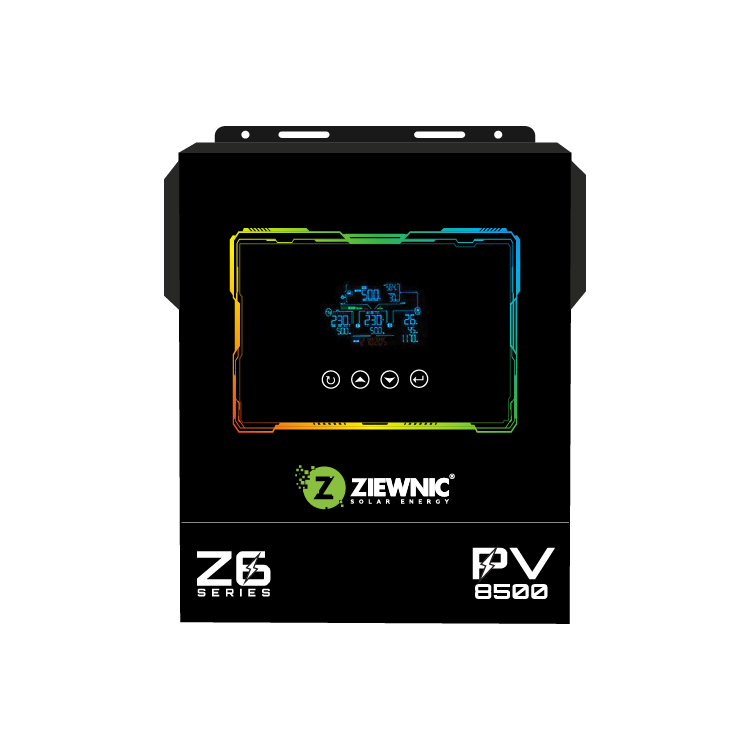

Ziewnic Z6 PV8500 7kVA Hybrid Solar Inverter (6G European)

The Ziewnic Z6 PV8500 is a 7kVA hybrid solar inverter from the Ziewnic 6G European series. It works in on-grid, off-grid and hybrid modes, supports net metering with 100 percent reverse grid feeding, and runs with a battery or without a battery. It has a smart colour screen LCD with touch buttons and built-in Wi-Fi.

Specifications

• Rated output: 7kVA
• Built-in dual MPPT solar charge controller: 8,500W, 160A
• PV input voltage range: 120-500V DC
• Nominal PV voltage: 240V DC
• Maximum PV input current: 36A
• Maximum AC charge current: 60A
• Surge: 2x rated power for 5 seconds
• Transfer time: zero
• Parallel operation: up to 9 units
• Phase: single-phase, supports three-phase in parallel
• Output: 100 percent pure sine wave
• Communications: RS232, USB, RS485, CAN
• Features: built-in Wi-Fi, battery equalisation and BMS, dual AC output, built-in zero export, anti-dust design, conformal coating
• Design: European design engineered in Taiwan
