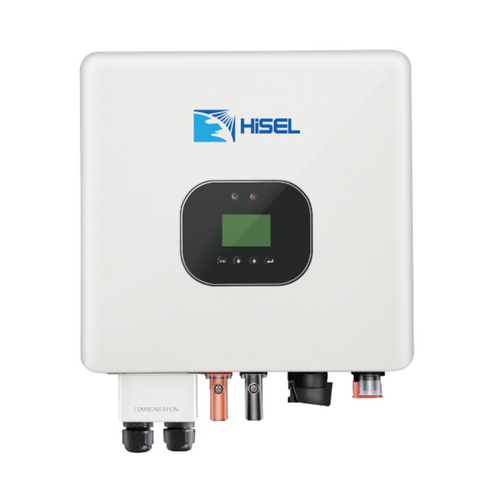

HiSEL HI-6K-SL 6kW Hybrid Inverter

The HiSEL HI-6K-SL is a 6kW single-phase hybrid inverter in an alloy enclosure with natural cooling and IP65 protection. It has dual MPPT, fast switching of 10ms or less, and supports parallel operation of up to 6 units.

Specifications

• Nominal output: 6kW, 6,600VA maximum
• Battery: 48V DC, Li-ion or lead-acid, 42-59V range, maximum charge/discharge 100A, self-adaptive BMS
• Maximum PV input: 9,000W, maximum DC voltage 550V, nominal 360V
• MPPT voltage range: 90-550V, 2 MPPT with 1 string each, maximum current 15A/15A, start-up 150V
• AC on-grid output: 6,000W, 6,600VA maximum, 230V, 190-265V range, 50/60Hz, rated 26A, maximum 29A
• Power factor: -0.8 to +0.8, THDi under 3 percent
• Maximum power from grid: 11,000VA, 48A
• Backup output: 6,000VA nominal, 7,000VA for 10 seconds, 208/220/230/240V, THDv under 3 percent, switch under 10ms
• Efficiency: maximum 98 percent, European 97.5 percent, battery-to-load 94 percent
• Protection rating: IP65, alloy enclosure, natural cooling
• Operating temperature: -25 to 60 deg C, altitude 4,000m
• Dimensions: 375 x 250 x 363mm, weight 20kg
• Interfaces: LCD, Wi-Fi, 4G, USB, CAN, RS485
• Warranty: 5-year replacement warranty
