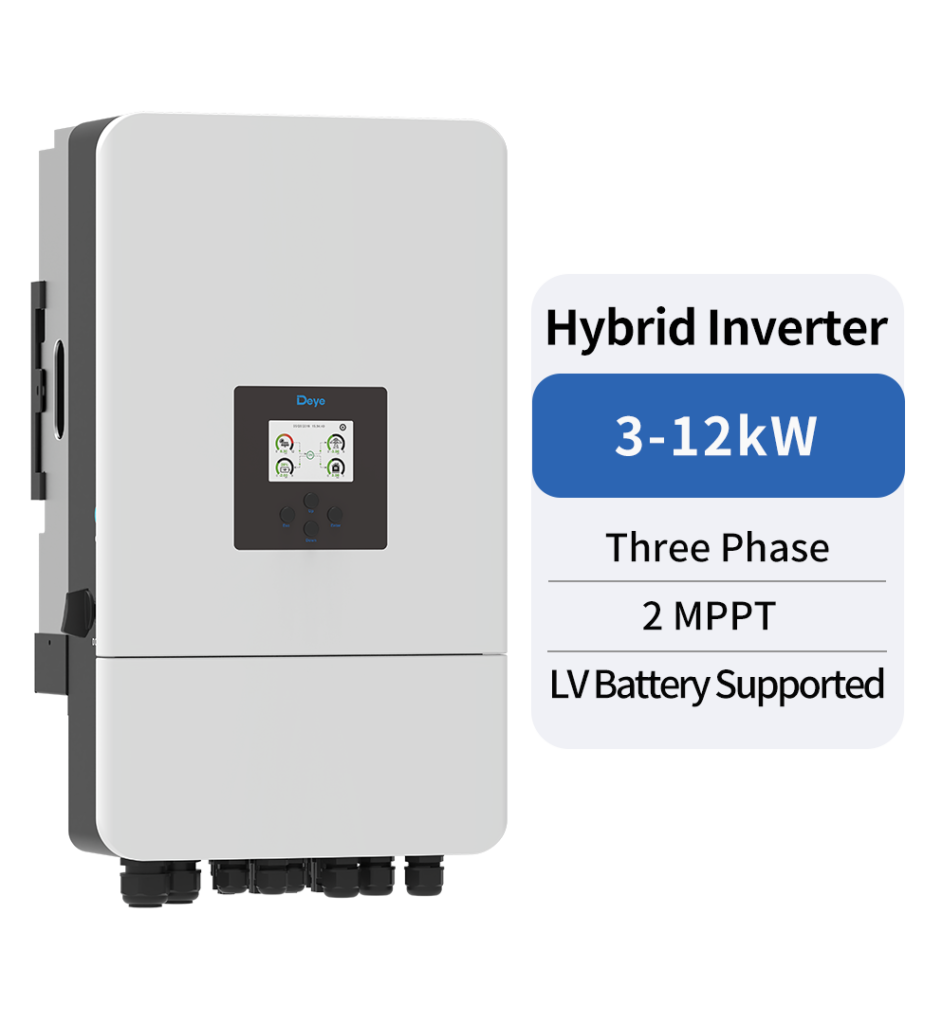

Deye SUN-8K-SG05LP3-EU-SM2 8kW Hybrid Inverter

The Deye SUN-8K-SG05LP3-EU-SM2 is an 8kW three-phase low-voltage hybrid inverter with a transformer-isolated battery design and dual MPPT. It supports 48V lithium and lead-acid batteries, AC coupling to retrofit an existing solar system, and parallel operation of up to 10 units.

Specifications

• Rated output: 8kW, 8,800VA maximum
• Battery: 40-60V lead-acid or Li-ion, maximum charge/discharge 190A, self-adaptive BMS
• Maximum PV access: 16,000W, maximum PV input 12,800W
• Maximum DC voltage: 800V, start-up 160V
• MPPT voltage range: 200-650V, rated 550V
• Maximum operating current: 26+26A, short circuit 39+39A
• MPPT: 2, strings 2+2
• AC output: 220/380V, 230/400V, 3L+N+PE, 50/60Hz
• Rated AC current: 12.2/11.6A, maximum 13.4/12.8A
• Maximum continuous AC passthrough: 45A
• Peak output: 2x rated for 10 seconds
• Maximum efficiency: 97.6 percent, Euro efficiency 97.0, MPPT over 99 percent
• Protection: DC reverse polarity, AC overcurrent, thermal, AC overvoltage, AC short circuit, DC component monitoring, AFCI optional, anti-islanding, DC switch, insulation impedance detection, residual current detection, Type II surge DC and AC
• Interfaces: LCD, Wi-Fi, RS485, CAN
• Protection rating: IP65
• Operating temperature: -40 to +60 deg C, derating above 45 deg C
• Dimensions: 386 x 660 x 250mm, weight 35.2kg
• Warranty: 5 years, up to 10 years
