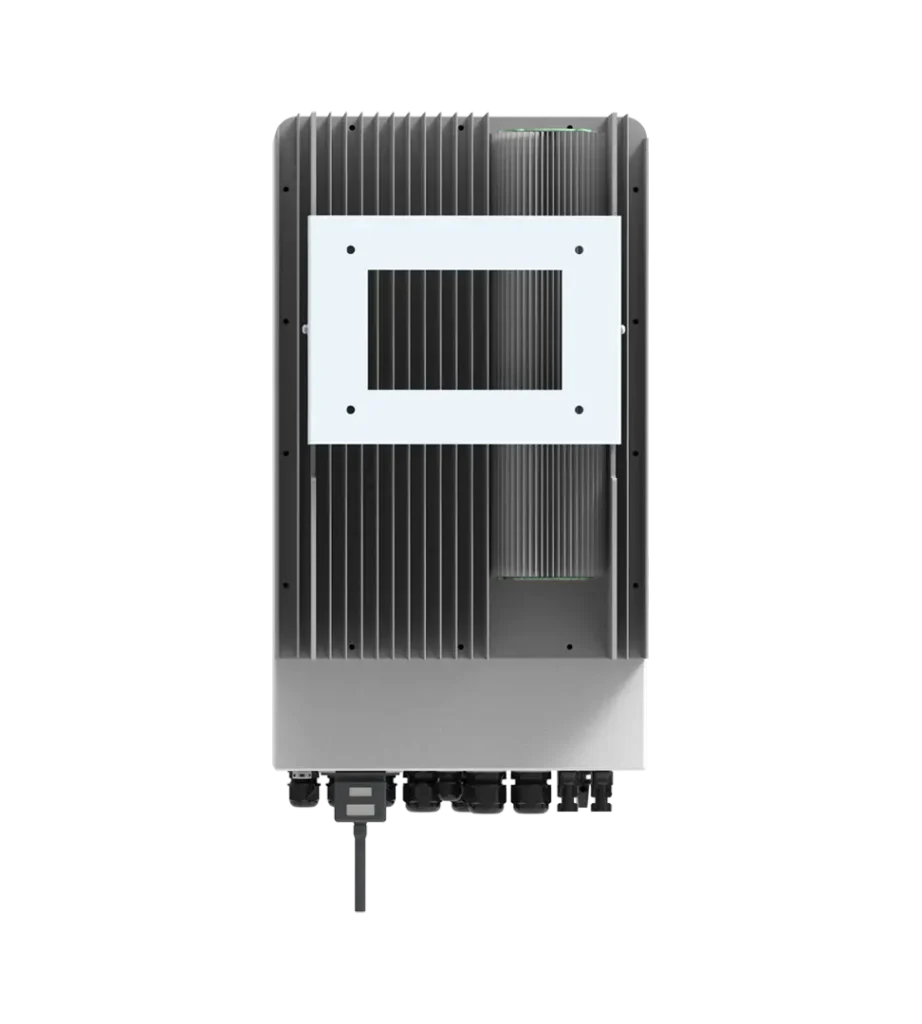

Deye SUN-5K-SG03LP1-EU 5kW Hybrid Inverter

The Deye SUN-5K-SG03LP1-EU is a 5kW single-phase low-voltage hybrid inverter with a colour touch LCD and IP65 protection. It supports 48V lithium and lead-acid batteries, AC coupling to retrofit an existing solar system, and parallel operation of up to 16 units.

Specifications

• Rated output: 5kW, 5,500VA maximum
• Battery: 40-60V lead-acid or Li-ion, maximum charge/discharge 120A, self-adaptive BMS
• Maximum DC input: 10,000W, maximum PV generator 6,500W
• Maximum DC voltage: 500V, start-up 125V
• MPPT voltage range: 150-425V, nominal DC 370V
• Maximum PV current: 13+13A, short circuit 17+17A
• MPPT: 2, strings 1+1
• AC output: 220/230V, 50/60Hz, L+N+PE
• Rated AC current: 22.7/26.1A, maximum 25/23.9A
• Maximum continuous AC passthrough: 35A
• Peak output: 2x rated for 10 seconds
• Maximum efficiency: 97.6 percent, Euro efficiency 96.5, MPPT over 99 percent
• Protection: DC reverse polarity, AC overcurrent, AC overvoltage, AC short circuit, Type II surge DC and AC
• Interfaces: Wi-Fi, RS485, CAN, LCD
• Protection rating: IP65, transformerless
• Operating temperature: -40 to +60 deg C, derating above 45 deg C
• Dimensions: 330 x 580 x 232mm, weight 25kg
• Warranty: 5 years, up to 10 years depending on installation conditions
