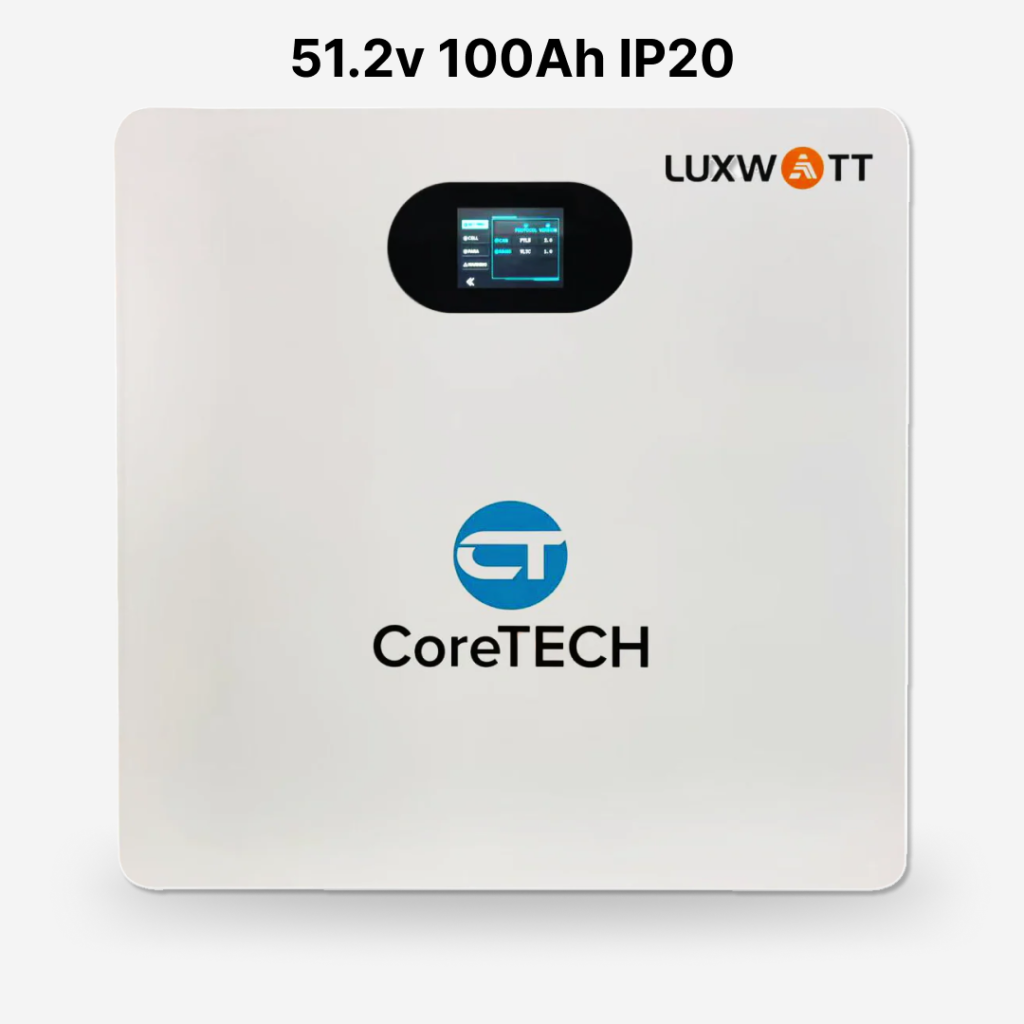

CoreTECH Luxwatt ES-BOX42 51.2V 100Ah LiFePO4 Lithium Battery — 5.12kWh

CoreTECH Luxwatt ES-BOX42 51.2V 100Ah LiFePO4 Lithium Battery — 5.12kWh stores 5.12kWh of energy for home and commercial solar systems in Pakistan. This wall-mounted LiFePO4 battery offers 6000+ cycles, a 3.2-inch touchscreen, and optional WiFi and Bluetooth, with parallel support for up to 16 batteries. Order on WhatsApp from Musa Solar Wala, Lahore.

Specifications:
– Brand: CoreTECH (LUXWATT)
– Model: ES-BOX42
– Battery type: LiFePO4 (Lithium Iron Phosphate)
– Nominal voltage: 51.2V
– Nominal capacity: 100Ah / 5120Wh
– Working voltage range: 44.8–56.8V
– Depth of discharge: 80–90%
– Continuous charge/discharge rate: 1C
– Max charge/discharge current: 100A
– Cycle life: 6000+ cycles (at 80% DoD)
– Communication: USB, RS485, CAN; WiFi and Bluetooth optional
– Display: 3.2-inch touchscreen
– Parallel support: up to 16 batteries
– Charging temperature: 0°C to 55°C
– Discharging temperature: -20°C to 55°C
– Humidity: 5–85% RH
– Dimensions: 485 x 480 x 155 mm
– Weight: up to 45 kg
– IP rating: IP20
– Protection: low-voltage safety, residual current monitoring, overvoltage, overload, short-circuit, advanced BMS, surge protection
– Certifications: ROHS, UN38.3, MSDS

Data sheet: Download the CoreTECH ES-BOX42 data sheet at https://drive.google.com/file/d/1Xou-iU4I_AqJ0Nc6ojfkLtyhJaTTohIt/view?usp=drive_link
